Description

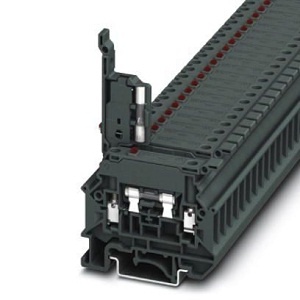

Phoenix Termial Block TB 4-HESILED 24(5X20) I

• Extended Product Type : Other

• Product ID : TB 4-HESILED 24(5X20) I

• Phoenix Type Designation : Other

Description

• Fuse terminal block, with LED display for 15-30 V AC/DC, connection method: Screw connection, cross section: 0.5 mm²- 6 mm², AWG: 20 – 10, nominal current: 6.3 A, nom. voltage: 24 V, width: 8.2 mm, fuse type: G / 5 x 20, mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray

Specification of Phoenix TB 4-HESILED 24(5X20) I

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 4 mm²
• Color : dark gray
• Rated surge voltage : 6 kV
• Maximum load current : 6.3 A
• Nominal current : 6.3 A
• Nominal voltage  : 24 V
• Width : 8.2 mm
• Length : 58 mm
