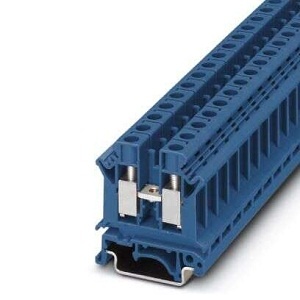

Phoenix Terminal Block UK 10 N BU

Description

Phoenix Termial Block UK 10 N BU

• Extended Product Type : Other

• Product ID : UK 10 N BU

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 800 V, nominal current: 57 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² – 16 mm², AWG: 20 – 6, width: 10.2 mm, color: blue, mounting type: NS 35/7,5, NS 35/15, NS 32

Specification of Phoenix UK 10 N BU

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 10 mm²
• Color : blue
• Rated surge voltage : 8 kV
• Maximum load current : 76 A
• Nominal current : 57 A
• Nominal voltage  : 800 V
• Width : 10.2 mm
• Length : 42.5 mm
