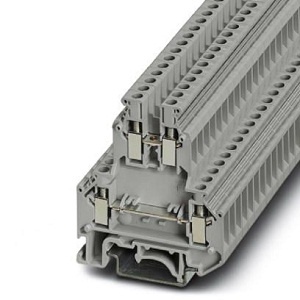

Phoenix Terminal Block UKK5

Description

Phoenix Termial Block UKK5

• Extended Product Type : Other

• Product ID : UKK5

• Phoenix Type Designation : Other

Description

• Double-level terminal block, connection method: Screw connection, cross section: 0.2 mm² – 4 mm², AWG: 24 – 12, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

Specification of Phoenix UKK5

• Number of levels : 2
• Number of connections : 4
• Nominal cross section : 4 mm²
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 32 A
• Nominal current : 32 A
• Nominal voltage  : 500 V
• Width : 6.2 mm
• Length : 56 mm
