Description

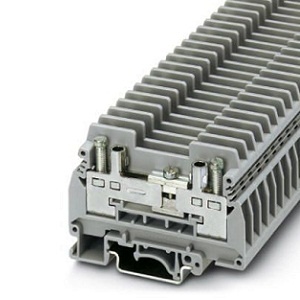

Phoenix Termial Block URTK/S

• Extended Product Type : Other

• Product ID : URTK/S

• Phoenix Type Designation : Other

Description

• Test disconnect terminal block, with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges, connection method: Screw connection, cross section: 0.5 mm² – 10 mm² , AWG: 20 – 10, width: 8.2 mm, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Specification of Phoenix URTK/S

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 6 mm²
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 57 A
• Nominal current : 41 A
• Nominal voltage  : 400 V
• Width : 8.2 mm
• Length : 72 mm
