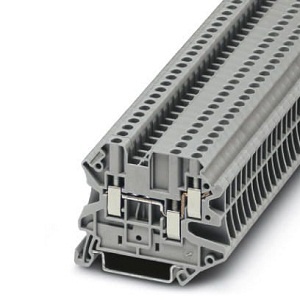

Phoenix Terminal Block UT 2,5-TWIN

Description

Phoenix Termial Block UT 2,5-TWIN

• Extended Product Type : Other

• Product ID : UT 2,5-TWIN

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, number of connections: 3, cross section: 0.14 mm² – 4 mm², AWG: 26 – 12, width: 5.2 mm, height: 46.9 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix UT 2,5-TWIN

• Number of levels : 1
• Number of connections : 3
• Nominal cross section : 2.5 mm²
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 30 A
• Nominal current : 24 A
• Nominal voltage : 500 V
• Width : 5.2 mm
• Length : 57.8 mm
• Height : 46.9 mm
