Description

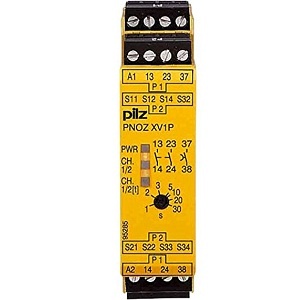

Pilz PLC Module 777602

• Extended Product Type : PLC

• Product ID : 777602

• Pilz Type Designation : PLC

Description

• Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 N/O, 1 N/C (t = 0 – 30 s). Automatic/monitored start UB 24 V DC, width: 22.5 mm, plug-in terminals of screw type Monitoring E-STOP, safety gates.

Specification of Pilz 777602

• Application options : Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 4, Safety gate monitor, Delayed E-STOP monitoring
• Operating modes : Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
• Supply voltage (V) : 24,0
• Supply voltage type : DC
• Number of instantaneous safety contacts : 2
• Number of delayed safety contacts : 1
• Max. current at DC13 I (6 cycles/min) : 2.0 A
• Max. current at AC15 : 1.5 A
• Terminal type : Screw terminal
• Terminal style : Plug-in
• Net weight : 230 g
