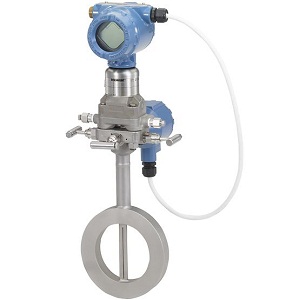

Rosemount™ 3051SFC Compact Annubar™ Flow Meter
For superior accuracy, the Rosemount 3051SFC Compact Annubar Flow Meter is a no-equal, multivariable device engineered with built-in flow calculations for direct reporting of fully-compensated mass flow. This flow meter includes an averaging pitot tube that installs between raised-face flanges, eliminating the need for impulse piping and additional process penetrations. The patented, T-shaped sensor is also designed with a flat upstream surface for high performance over a wide flow range.
Description
3051SFC
ROSEMOUNT
Annubar™ Flow Meter
Additional Information
For superior accuracy, the Rosemount 3051SFC Compact Annubar Flow Meter is a no-equal, multivariable device engineered with built-in flow calculations for direct reporting of fully-compensated mass flow. This flow meter includes an averaging pitot tube that installs between raised-face flanges, eliminating the need for impulse piping and additional process penetrations. The patented, T-shaped sensor is also designed with a flat upstream surface for high performance over a wide flow range.
Specifications
- Warranty
- Up to 15-year limited warranty
- Rangedown
- Up to 200:1 (14:1 flow turndown)
- Measurement Range
- Up to 2000 psi (137,89 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage
- Line Size
- 2 to 8 in. (50 to 200 mm)
- Output
- Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow
- Communication Protocol
- 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus
- Process Wetted Material
- 316 SST
- Diagnostics
- Basic Diagnostics, Power Advisory Diagnostics, Advanced Diagnostics
- Certifications/Approvals
- SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Features
- Compact pitot tube fits and installs between raised-face flanges for straightforward installation
- Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
- Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
- Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy
- T-shape sensor with flat upstream surface offers a fixed separation point for high performance over a wide flow range
- All-welded, SuperModule™ design provides industry-leading accuracy in harsh environments and applications
- Flowmeters come fully configured, leak-tested and ready to install right out of the box for fast installation
- Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging
- Sensor integral centering ring ensures proper alignment in the pipe for accuracy
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Brand
Emerson
