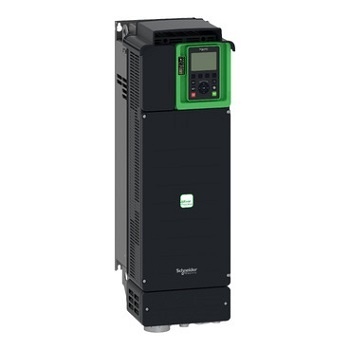

Schneider ATV630D15N4 Variable Speed Drive 15kW 20hp
$2,900.00
AVAILABILITY: Generally allow 7-10 days to ship
Description
Schneider ATV630D15N4 Variable Speed Drive 15kW 20hp
- Extended Product Type: Inverter
- Product ID: ATV630D15N4
- Schneider Type Designation: Inverter
Description of Schneider ATV630D15N4 Variable Speed Drive
Schneider ATV630D15N4 variable speed drive, Altivar Process ATV600, ATV630, 15kW, 20hp, 380 to 480V, IP21, UL type 1.
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It weighs 13.6kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Specification of Schneider ATV630D15N4 Variable Speed Drive
- Range of Product: Altivar Process ATV600
- Product or Component Type: Variable speed drive
- Product Specific Application: Process and utilities
- Device short name: ATV630
- Variant: Standard version
- Product destination: Asynchronous motors, Synchronous motors
- EMC filter: Integrated 164.04 ft (50 m) IEC 61800-3 category C2, Integrated 492.1 ft (150 m) IEC 61800-3 category C3
- IP degree of protection: IP21IEC 61800-5-1, IP21IEC 60529
- [Us] rated supply voltage: 380…480 V
- Degree of protection: UL type 1 UL 508C
type of cooling: Forced convection - Supply frequency: 50…60 Hz – 5…5 %
- [Us] rated supply voltage: 380…480 V – 15…10 %
- Motor power kW: 15 kW normal duty), 11 kW heavy duty)
- Maximum Horse Power Rating: 20 hp normal duty, 15 hp heavy duty
- Line current: 27 A 380 V normal duty)
- 23.3 A 480 V normal duty)
- 20.6 A 380 V heavy duty)
- 18.1 A 480 V heavy duty)
- Prospective line Isc: 50 kA
- Apparent power: 19.4 kVA 480 V normal duty), 15 kVA 480 V heavy duty)
- Continuous output current: 31.7 A 4 kHz normal duty, 23.5 A 4 kHz heavy duty
- Asynchronous motor control profile: Variable torque standard, Optimized torque mode, Constant torque standard
- Synchronous motor control profile: Permanent magnet motor, Synchronous reluctance motor
- Speed drive output frequency: 0.1…500 Hz
- Nominal switching frequency: 4 kHz
- Switching frequency: 2…12 kHz adjustable, 4…12 kHz with derating factor
- Safety function: STO (safe torque off) SIL 3
- Discrete input logic; 16 preset speeds
- Communication Port Protocol: Ethernet, Modbus TCP, Modbus serial
- Option card: Slot A communication module, Profibus DP V1
- Slot A communication module, PROFINET
- Slot A communication module, DeviceNet
- Slot A communication module, Modbus TCP/EtherNet/IP
- Slot A communication module, CANopen daisy chain RJ45
- Slot A communication module, CANopen SUB-D 9
- Slot A communication module, CANopen screw terminals
- Slot A/slot B digital and analog I/O extension module
- Slot A/slot B output relay extension module
- Slot A communication module, Ethernet IP/Modbus TCP/MD-Link
- communication module, BACnet MS/TP
- communication module, Ethernet Powerlink
Additional information
| Weight | 36 lbs |
|---|---|
| Dimensions | 18 × 16 × 30 in |
