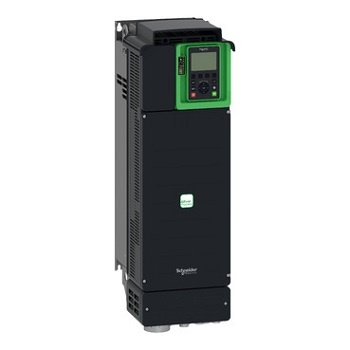

Schneider ATV630D37N4 Variable Speed Drive 37Kw 50Hp
$3,880.00
AVAILABILITY: Generally allow 7-10 days to ship
Description
Schneider ATV630D37N4 Variable Speed Drive 37Kw 50Hp
- Extended Product Type: Inverter
- Product ID: ATV630D37N4
- Product code: 651160
- Schneider Type Designation: Inverter
Description of Schneider ATV630D37N4 Variable Speed Drive
Schneider ATV630D37N4 Variable Speed Drive ATV630 – 37kW/50hp – 380…480V – IP21/UL type 1, 380 to 500 Vac. Motor Drives ATV630 Book drive IP20 -50HP-400/480V 3ph.
Specification of Schneider ATV630D37N4 Variable Speed Drive
- United Item Number: 651160
- Application: Asynchronous motors; synchronous motors; Process and utilities
- Brand: Altivar Process ATV600
- Catalog Number: ATV630D37N4
- Communication: Ethernet; Modbus TCP; Modbus serial;Ethernet;2-wire RS 485
- Degree Of Protection: UL type 1 UL 508C
- Display for local diagnostic: 3 LEDs; for embedded communication status 3 LEDs (dual colour); for communication module status 4 LEDs (dual colour); for presence of voltage 1 LED (red)
- Environmental Conditions -15-50 AC WITHOUT)-50-60 AC WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3
- Input Voltage: 380…480 V – 15…10 %
- Isolation: Between power and control terminals
- Manufacturer: Schneider Electric
- Mounting: Wall mount
- Number of Phases: 3 phase
- Output Voltage: <= power supply voltage
- Phase: 3 PHASES
- Special Features: Variable torque standard; constant torque standard; optimized torque mode; STO (safe torque off) SIL 3;16 preset speeds; Forced convection; Control removable screw terminals 0.5…1.5 mm AWG 20…AWG 16;line side screw terminal 35…50 mm AWG 3…AWG 1;motor screw terminal 35…50 mm AWG 3…AWG 1;1;Thermal protection motor; safe torque off motor; motor phase break motor; thermal protection drive; safe torque off drive; overheating drive; overcurrent between output phases and earth drive; overload of output voltage drive; short-circuit protection drive; motor phase break drive; over voltages on the DC bus drive; line supply overvoltage drive; line supply under voltage drive; line supply phase loss drive; overspeed drive; break on the control circuit drive; External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection; internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection; internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
- Speed Rating: ALTIVAR PROCESS ATV600
- Standard: IP21IEC 61800-5-1;IP21IEC 60529
- Type: Variable speed drive
- Voltage: 380…480 V – 15…10 %
Additional information
| Weight | 80 lbs |
|---|---|
| Dimensions | 30 × 24 × 60 in |
