Description

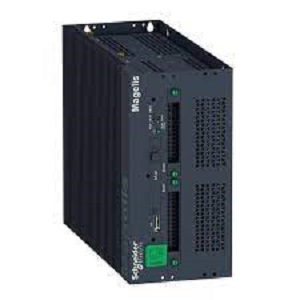

Schneider Electric HMIBMP0I74D4001

• Extended Product Type : PLC

• Product ID  : HMIBMP0I74D4001

• Schneider Type Designation : PLC

Description

• Industrial iPC box PC with 4 expansion slots – Schneider Electric (Magelis iPC) – IP40 – 8GB DDR3 (RAM) memory capacity – can connect with mini-PCIe slots (expansion) x 4 – with RS-232 + RS-485 + RS-422 + Ethernet communication capability – 24Vdc supply voltage – with USB 2.0 ports x 2 + USB 3.0 ports x 2 + WLAN A antenna + WLAN B antenna + GPRS antenna + RJ45 ports x 2 + 9-pin male D-Sub connector + DisplayPort connectors x 2 + Ground connection pin + Slide-in CFast card slot + HDD/SSD ports x 2 – Wall / Book / DIN rail / Flat mounting – Intel Core i7-4650U 1.7GHz processor – with TPM 2.0 module (cybersecurity encryption)

Specification of Schneider HMIBMP0I74D4001

• Series : Magelis iPC
• Main function : Industrial PC
• Functions : Industrial iPC box PC with 4 expansion slots  with buzzer reset button
• Supply voltage (DC) : 24Vdc
• Power consumption : 18.1 W, (max) 38.4 W
