Description

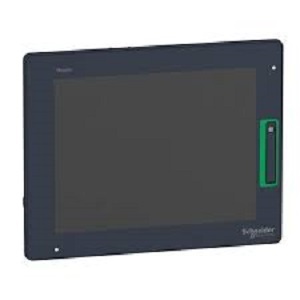

Schneider Electric HMIDT542

• Extended Product Type : PLC

• Product ID  : HMIDT542

• Schneider Type Designation : PLC

Description

• Universal operator dialogue touchscreen panel HMI / Programmable Terminal (PT) – Schneider Electric (Magelis GTU) – 800×600pixels display (10.4″ SVGA format 4/3 TFT 16M color LCD with white LED backlight) – IP66 / IP67 / NEMA 4X – 12Vdc-24Vdc supply voltage – with USB mini-B port + USB type A port – Flush mounting – Multi resistive touchscreen display – Replaces HMIGTW5354

Specification of Schneider HMIDT542

• Series : Magelis GTU
• Main function : HMI / Display unit
• Functions : Universal operator dialogue touchscreen panel HMI / Programmable Terminal (PT)
  natural air circulation cooling
• Supply voltage (DC) : 12Vdc-24Vdc
• Pixel count : 800×600 pixels
• Display type : 10.4″ SVGA format 4/3 TFT 16M color LCD with white LED backlight
• Power consumption : (display) 15 W
