Description

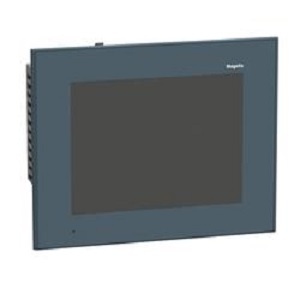

Schneider HMIGTO5310FW Operator Dialogue Touchscreen HMI

• Extended Product Type: PLC
• Product ID: HMIGTO5310FW
• Schneider Type Designation: PLC

Description of Schneider HMIGTO5310FW Operator HMI

Schneider HMIGTO5310FW Operator dialogue touchscreen HMI / Programmable Terminal (PT) – Schneider Electric (Magelis GTO) – 640x480pixels display (10.4″ VGA TFT 65K color with LED backlight) – IP65 / IP67 / NEMA 4X – 96MB (Application) memory capacity – can connect with 4GB SD card (expansion) – with Modbus + Modbus TCP/IP + Uni-TE + RS-232C + RS-485 + Ethernet TCP/IP communication capability – 24Vdc supply voltage – with USB mini-B port + USB type A port + RJ45 ports x 2 + 9-pin D-Sub connector – Flush mounting – with Magelis OS pre-installed – 333 MHz RISC processor

Specification of Schneider HMIGTO5310FW Operator Dialogue Touchscreen HMI

• Series: Magelis GTO
• Main function: HMI / Display unit
• Functions: Operator dialogue touchscreen HMI / Programmable Terminal (PT), 32 groups of 64 recipes, comprising 1024 ingredients max recipes, curves with log, alarm log, built-in real-time clock
• Supply voltage (DC): 24Vdc
• Pixel count: 640×480 pixels
• Memory capacity: 96MB (Application)
• Display type: 10.4″ VGA TFT 65K color with LED backlight
