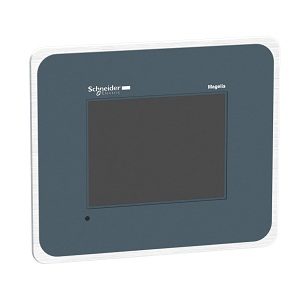

Schneider HMI HMIGXU3512 Advanced Touchscreen Panel

• Extended Product Type: HMI/Touch screen
• Product ID: HMIGXU3512
• Schneider Type Designation: HMI/Touch screen

Description of Schneider HMI HMIGXU3512 Touchscreen Panel

This product is part of the Magelis Easy GXU range, an offer of touchscreen panels. The advanced touchscreen panel features 7inch LCD screen and supports 800 x 480 pixels WVGA resolution. It is designed with an internal memory of 48MB for application, internal DDR of 128MB and internal backup memory of 128kB. It supports 65536 colours with backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24V DC. It is furnished with USB type mini B, COM1 serial link is 9-way male SUB-D, RS232C, COM2 serial link is 9-way male SUB-D, RS422/RS485, USB type A and Ethernet 10/100BASE-TX integrated connections. It is an IP65 rated product. It is suitable for textile, packaging, HVAC and pumping applications. This product is certified by CE. Magelis Easy GXU, Essential touch screen panels, are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges, fit for purpose at affordable price with no compromise on easiness, robustness, availability and services.

Specification of Schneider HMI HMIGXU3512 Advanced Touchscreen Panel

• Range of product: Magelis Easy GXU
• Product or component type: Advanced touchscreen panel
• Display size: 7 inch
• Display resolution: 800 x 480 pixels WVGA
• Rated supply voltage: 24 V DC
• software designation: Vijeo Designer Basic configuration software
