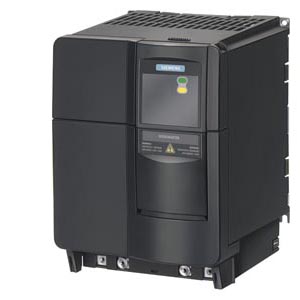

Siemens Micromaster 420 AC Frequency Inverter 6SE6420-2UD27-5CA1

Siemens Micromaster 420 (MM420) Series AC Frequency Inverter for 7.5kW (10HP) 400V 3 Ph motor in VxF control to 19A. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size C – 185mm Wide x 245mm High x 195mm Deep. IP20.

Overload – 150% x 60seconds.
Speed Control Range – 0Hz to 650Hz.
Braking – DC braking, compound braking.

1 Analogue Input, 3 Digital Inputs, 1 Analogue Output, 1 Relay Output
Input Current – 22A
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for equivalent with EMC filtering.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).

Full part number is – 6SE6420-2UD27-5CA1 or 6SE64202UD275CA1. Note: Siemens is sometimes incorrectly spelled Seimens.
