Description

Siemens Level Switch 7ML5630-0BA00-0CA0

• Extended Product Type : Other

• Product ID : 7ML5630-0BA00-0CA0

• Siemens Type Designation : Other

Description

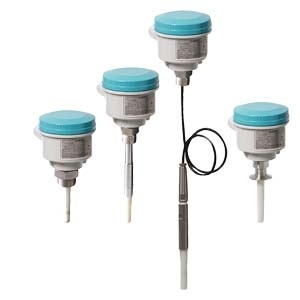

• Pointek CLS200 RF Capacitance point level switch, rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel 1″ NPT ((Taper),ANSI/ASME B1.20.1) Probe length: (length from flange face) (threaded lengths include process thread) Compact (Threaded 120mm (4.72″), Flanged 98mm (3.86″)) Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: 316L Stainless Steel with PPS probe body Approvals: Dust Ignition Proof CE, C-TICK, ATEX II 1/2 D T100 Enclosure and Lid: Aluminum epoxy coated 2x 1/2″ NPT via adaptor- cable inlet,IP65 .

Specification of Siemens 7ML5630-0BA00-0CA0

• Product Lifecycle (PLM) : PM300:Active Product
• Net Weight (kg) : 0.500 Kg
• Product Group : 4717
• Group Code : R3P5
• Product class : C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
