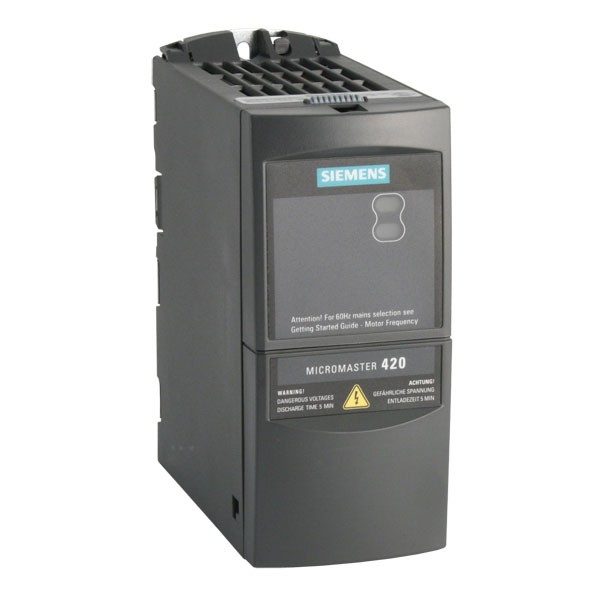

Siemens Micromaster 420 AC Frequency Inverter 6SE6420-2UD17-5AA1

Siemens Micromaster 420 (MM420) Series AC Frequency Inverter for 0.75kW (1HP) 400V 3 Ph motor in VxF control to 2.1A. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size A – 73mm Wide x 173mm High x 149mm Deep. IP20.

Overload – 150% x 60seconds.
Speed Control Range – 0Hz to 650Hz.
Braking – DC braking, compound braking.

1 Analogue Input, 3 Digital Inputs, 1 Analogue Output, 1 Relay Output
Input Current – 3.7A
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for Siemens external EMC Filter module.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Mounting onto symmetrical DIN rail or use 2 x M4 Bolts.

Full part number is – 6SE6420-2UD17-5AA1 or 6SE64202UD175AA1. Note: Siemens is sometimes incorrectly spelled Seimens.
