Description

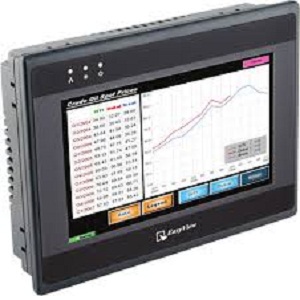

Weintek HMI MT6070ih3

• Extended Product Type : HMI/Touch screen

• Product ID : MT6070ih3

• Weintek Type Designation : HMI/Touch screen

Features

• 7″ 800×480 TFT LCD
• Fan-less cooling system
• Built-in flash memory and RTC
• NEMA4/IP65 compliant front panel
• LED Back Light
• One USB Host and one USB Client port
• Power Isolator inside
• Com1 RS485 and Com3 RS485 support MPI 187.5K, please select one to use at one time

Specification of Weintek MT6070ih3

• Construction : plastic molding housing
• Power input : 24±20%VDC
• Power Consumption :  250mA@24VDC
• Display type : TFT LCD
• Display size  : 7″
• Resolution : 800 x 480
• Dimension (W x H x D) : 200 x 146 x 42.5mm
• Weight : 0.25 kg
