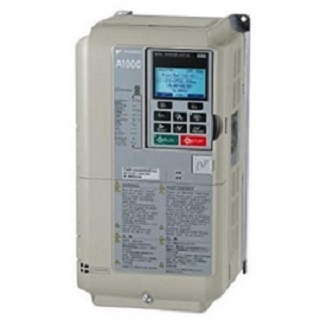

Yaskawa CIMR-AU4A0165FAA AC Drive 125HP CIMRAU4A0165FAA

• Extended Product Type: AC Drives
• Product ID: CIMR-AU4A0165FAA
• Yaskawa Type Designation: AC Drives

Description of Yaskawa CIMR-AU4A0165FAA AC Drive 125HP

Yaskawa CIMR-AU4A0165FAA Variable Frequency Drive A1000 AC Drive 380-480 VAC Constant Torque with input options of either Three Phase: 125 Hp 165 Amp or (Single Phase: 40 Hp 52 Amp) Industrial VFD. Nema 1 Chassis 28.74″ x 12.95″ x 11.14″ includes configurable LCD display and keypad with built in memory for backup. Includes 3 Analog inputs, 2 programmable Analog outputs, 8 programmable Digital inputs with 1 can be used as pulse input, 4 digital outputs. WE RECCOMEND Line and Load Reactors for all VFD’s. Line (Input) Reactors reduce harmonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives.

Specification of Yaskawa CIMR-AU4A0165FAA AC Drive 125HP

• Manufacturer Part Number: CIMR-AU4A0165FAA
• Item Number: CIMR-AU4A0165FAA
• Manufacturer: Yaskawa
• Product Series: A1000
• Family Series: Yaskawa Drives, A1000 Series
• Input Phase: 3
• HP (Constant Torque Rating): 100 hp
• HP (Variable Torque Rating): 125 hp
• Amps (Constant Torque Rating): 150 A
• Amps (Variable Torque Rating): 165 A
• Braking Type: DC Injection, Dynamic Braking Transistor Optional (External)
• Closed Loop: Optional
• AC Line Regenerative: No
• Operator Controls Keypad: Included
• IP Rating: IP20
• Motor Control-Max Level: Closed Loop Vector for Permanent Magnet
• Input Range Voltage (AC): 380-480 VAC
• Max Frequency: 400 Hz
• Dynamic Braking Trans: Optional (External)
