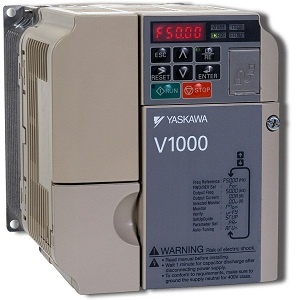

Yaskawa CIMR-VU4A0005FAA AC Drives CIMRVU4A0005FAA 2HP

Yaskawa CIMR-VU4A0005FAA AC Drives CIMRVU4A0005FAA 2HP

$1,360.00

AVAILABILITY: In Stock Can Ship Right Now

1 in stock

SKU: CIMR-VU-4A0005FAA Category: Tag:
Yaskawa

Description

Yaskawa CIMR-VU4A0005FAA AC Drives CIMRVU4A0005FAA 2HP

  • Extended Product Type: AC Drives
  • Product ID: CIMR-VU4A0005FAA
  • Yaskawa Type Designation: AC Drives

Description of Yaskawa CIMR-VU4A0005FAA AC Drives

Yaskawa CIMR-VU4A0005FAA AC Drives, V1000 Series – Drive, AC, 2HP, 480V, 3PH, 4.8A, CT, N1 3HP, 5.4A

Versatile Variable Speed/Frequency Drive (VSD/VFD) / Inverter – USA region – (V1000 series) – Input voltage (3-phase (3P)) 380Vac-480Vac (400Vac / 415Vac / 440Vac) – Rated active power 2.2kW (Normal duty) / 3HP (Normal duty) – Rated output current 5.4A (Normal duty) – frequency (output) 0.01-400Hz – IP20 / NEMA 1 – with RS-422 + RS-485 communication capability – Wall mounting – Standard heatsink fins – 3-phase 400V class – ordering code CIMRVU4A0005FAA

Specification of Yaskawa CIMR-VU4A0005FAA AC VFD Drive

  • Primary brand: Yaskawa
  • Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
  • Product series / family name: V1000 series
  • Display: LED 5-digit display
  • Type of network: 3-phase input (3P)
  • Network frequency: (output) 0.01-400 Hz, (input) 50/60 Hz
  • Functions: Versatile Variable Speed/Frequency Drive (VSD/VFD) / Inverter – USA region
    • Speed search
    • Over torque detection
    • Torque limit
    • 17-step speed
    • Acceleration/Deceleration time switch
    • S-curve accel/decel
    • 3-wire sequence
    • Auto-tuning
    • Dwell
    • Cooling fan on/off switch
    • Slip compensation
    • Torque compensation
    • Frequency jump
    • Upper/lower limits for frequency reference
    • DC injection braking at start and stop
    • Overexcitation braking
    • High slip braking
    • PID control
    • Energy saving control
    • Fault restart
    • Application presets
  • Supply voltage (AC): 380Vac-480Vac (400Vac / 415Vac / 440Vac)
  • Rated current: 5.4A (Normal duty), 4.8A (heavy duty), 120% / 60s (Normal duty) or 150% / 60s (heavy duty) overload current rating
  • Rated active power (kW): 2.2kW (Normal duty), 1.5kW (heavy duty)
  • Rated power (HP): 3HP (Normal duty), 3HP (Heavy-duty)
  • Protection functions: Motor overheat, Overcurrent, Overload, Overvoltage, Under voltage, Momentary power loss ride-thru, Overheat, Ground fault
  • Protection settings: (Overcurrent) output current exceeds 200% of heavy duty rating, (Overload) 120% of rated output current; normal duty, (Overload) 150% of rated output current; heavy duty
  • Communication protocol; RS-422, RS-485
  • Mounting mode: Wall mounting
  • Digital inputs: 1 x digital input (24Vdc; Sink/Source) (S1 – Forward / Stop)
    • 1 x digital input (24Vdc; Sink/Source) (S2 – Reverse / Stop)
    • 1 x digital input (24Vdc; Sink/Source) (S3 – External fault)
    • 1 x digital input (24Vdc; Sink/Source) (S4 – Fault reset)
    • 1 x digital input (24Vdc; Sink/Source) (S5 – Multi-step speed 1)
    • 1 x digital input (24Vdc; Sink/Source) (S6 – Multi-step speed 2)
    • 1 x digital input (pulse / 32kHz)
    • 1 x digital input (STO)
  • Digital outputs: 1 x digital output (SPDT Single Pole Double Throw contact type) (MA-MB-MC; MC-MB closed means fault)
    • 1 x digital input (Pulse train output; PTO)
    • Analog inputs
    • 1 x analog input (0-10Vdc) (Analog input 1)
    • 1 x analog input (0-10Vdc) (Analog input 2)
  • Analog outputs: 1 x analog output (2mA / 0-10Vdc) (AM – Monitor output)
  • Degree of protection: IP20, NEMA 1
  • Ambient air temperature for storage: -20…+60 °C
  • Technology used in component: Standard heatsink fins
  • Rated apparent power (S): 4.1kVA (Normal duty), 3.7kVA (heavy duty)
  • Application type: Conveyors, Packaging’s, Fans, Pumps, Foods and beverages, Industrial washers, Compressors
  • Order code / Manufacturer SKU: CIMRVU4A0005FAA
  • Compliant with standard(s): UL 508C, CSA 22.2 No. 14-95, UL, cUL, CE, RoHS, EN 50178 (LVD), EN 50081-2, EN 50082-2 (EMC), EN 954-1, Category 3 Safety Standard EN 61800-3, IEC 60529, IEC 146, FCC CFR 47 Part 15 Subpart B, TUV, IEC 60529

Additional information

Weight10 lbs
Dimensions12 × 10 × 12 in
