Description

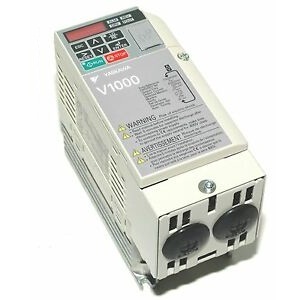

Yaskawa CIMR-VUBA0003FAA AC Drive 0.75HP CIMRVUBA0003FAA

• Extended Product Type: AC Drives
• Product ID: CIMR-VUBA0003FAA
• Yaskawa Type Designation: AC Drives

Description of Yaskawa CIMR-VUBA0003FAA AC Drive

Yaskawa AC Drives, V1000 Series CIMR-VUBA0003FAA – Drive, AC, 1/2HP, 240V, 1PH, 3A, CT, N1 3/4HP, 3.3A, VT 5.89″Hx2.68″Wx4.65″D. The V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa.

Specification of Yaskawa CIMR-VUBA0003FAA AC Drive 0.75HP 3A

• Manufacturer: Yaskawa
• Series: V1000 Series
• Model: CIMR-VUBA0003FAA
• Horsepower: 0.75 HP
• Input Voltage(s): 208 – 240 VAC Input,
• Rated Current: 3.3 Amps
• Output Voltage(s): 240 VAC Output
• Input Phase: Single Phase Input
• Output Phase: Three Phase Output
• Phase Converter: No
• Enclosure: NEMA 1
• UV Rating: None
• Digital Input(s): 8 Inputs (NPN)
• Digital Output(s): 3 Outputs (Relay)
• Analog Input(s): 3 Inputs (0 – 10 VDC / -10 – 10 VDC / 4 – 20 mA)
• Analog Output(s): 2 Outputs (0 – 10 VDC / 2 – 10 VDC / 4 – 20 mA)
• Operating Modes: Sensorless (Open Loop) Vector Control, Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable)
