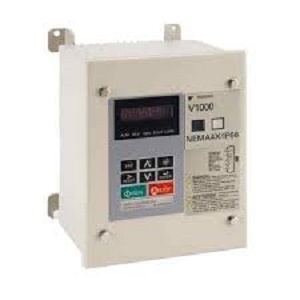

Yaskawa CIMR-VUBA0003GAA AC Drive 3/4HP 3.3A CIMRVUBA0003GAA

• Extended Product Type: AC Drive
• Product ID: CIMR-VUBA0003GAA
• Yaskawa Type Designation: AC Drive

Description of Yaskawa CIMR-VUBA0003GAA AC Drive 3/4HP

Versatile enclosed variable Speed/Frequency Drive (VSD/VFD) / Inverter – Yaskawa (V1000-4X series) – Input voltage (Single-phase (2P)) 200Vac-240Vac (208Vac / 220Vac / 230Vac) – Rated active power 0.75kW (Normal duty) / 3/4HP (Normal duty) – Rated output current 3.3A (Normal duty) – frequency (output) 0.01-400Hz – NEMA 4X / NEMA 12 / IP66 – with RS-422 + RS-485 communication capability – Wall mounting – Standard heatsink fins – Single-phase 200V class – ordering code CIMRVUBA0003GAA

Specification of Yaskawa CIMR-VUBA0003GAA AC Drive 3/4HP 3.3A

• Primary brand: Yaskawa
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: V1000-4X series
• Network frequency(output): 0.01-400 Hz, (input) 50/60 Hz
• Functions: Versatile enclosed variable Speed/Frequency Drive (VSD/VFD) / Inverter, Speed search, Overtorque detection, Torque limit, 17-step speed, Acceleration/Deceleration time switch, S-curve accel/decel, 3-wire sequence, Auto-tuning, Dwell, Cooling fan on/off switch, Slip compensation, Torque compensation, Frequency jump, Upper/lower limits for frequency reference, DC injection braking at start and stop, Overexcitation braking, High slip braking, PID control, Energy saving control, Fault restart, Application presets
• Supply voltage: (AC)200Vac-240Vac (208Vac / 220Vac / 230Vac)
• Display: LED 5-digit display
• Type of network: Single-phase input (2P)
• Rated current: 3.3A (Normal duty), 3A (heavy duty), 125% / 60s (Normal duty) or 150% / 60s (heavy duty) overload current rating
• Rated active power (kW): 0.75kW (Normal duty), 0.55kW (heavy duty)
• Rated power (HP): 3/4HP (Normal duty), 1/2HP (Heavy-duty)
• Protection functions: Motor overheat, Overcurrent, Overload, Overvoltage, Undervoltage, Momentary power loss ride-thru, Overheat, Ground fault
• Protection settings: (Overcurrent) output current exceeds 200% of heavy duty rating
  • (Overload) 125% of rated output current; normal duty
  • (Overload) 150% of rated output current; heavy duty
• Communication protocol: RS-422, RS-485
• Mounting mode: Wall mounting
• Digital inputs: 1 x digital input (24Vdc; Sink/Source) (S1 – Forward / Stop)
  • 1 x digital input (24Vdc; Sink/Source) (S2 – Reverse / Stop)
  • 1 x digital input (24Vdc; Sink/Source) (S3 – External fault)
  • 1 x digital input (24Vdc; Sink/Source) (S4 – Fault reset)
  • 1 x digital input (24Vdc; Sink/Source) (S5 – Multi-step speed 1)
  • 1 x digital input (24Vdc; Sink/Source) (S6 – Multi-step speed 2)
  • 1 x digital input (pulse / 32kHz)
  • 1 x digital input (STO)
• Digital outputs: 1 x digital output (SPDT Single Pole Double Throw contact type) (MA-MB-MC; MC-MB closed means fault)
  • 1 x digital input (Pulse train output; PTO)
• Analog inputs: 1 x analog input (0-10Vdc) (Analog input 1)
  • 1 x analog input (0-10Vdc) (Analog input 2)
• Analog outputs1 x analog output (2mA / 0-10Vdc) (AM – Monitor output)
• Degree of protection: NEMA 4X, NEMA 12, IP66
• Ambient air temperature for storage-20…+60 °C
• Technology used in component: Standard heatsink fins
• Rated apparent power (S): 1.3kVA (Normal duty), 1.1kVA (heavy duty)
• Application type: Conveyors, Packagings, Fans, Pumps, Foods and beverages, Industrial washers, Compressors
• Order code / Manufacturer SKU: CIMRVUBA0003GAA
• Manufacturer product status: Commercialized
• Compliant with standard(s): UL 508C, CSA 22.2 No. 14-95, UL, cUL, CE, RoHS, EN 50178 (LVD), EN 50081-2, EN 50082-2 (EMC), EN 954-1, Category 3 Safety Standard EN 61800-3
  IEC 60529, IEC 146, FCC CFR 47 Part 15 Subpart B, TUV, IEC 60529
