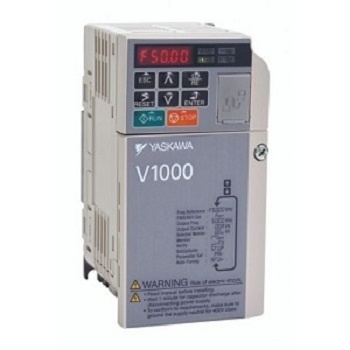

Yaskawa CIMR-VC4A0023FAA AC Drive 10HP CIMRVC4A0023FAA

• Extended Product  Type: Servo Motor Drive
• Product ID: CIMR-VC4A0023FAA
• Yaskawa Type Designation: Servo Motor Drive

Description of Yaskawa CIMR-VC4A0023FAA AC Servo Drive

Yaskawa CIMR-VC4A0023FAA V1000 Series AC Inverter for 7.5kW (10HP) 400V 3ph motor to 18A at high overload or 11kW (15HP) to 23A when Fan/Pump rated. Operates in VxF or Sensorless Vector control and converts fixed frequency Three Phase 400V input to variable frequency Three Phase 400V for a standard AC Induction motor.

Specification of Yaskawa CIMR-VC4A0023FAA AC Servo Drive

• Manufacturer: YASKAWA
• Type of module: vector inverter
• Max motor power: 7.5/11kW
• Inverter output voltage: 3 x 400V AC
• Three-phase power supply voltages range: 3 x 380…480V AC
• Electrical connection: screw terminals
• Mounting: for wall mounting
• The programming method: keypad, PC
• Protection: anti-overload OPP, anti-overvoltage OVP, overheating OTP, voltage drop BOP
• Operating temperature: -10…50°C
• Output frequency: 0…400Hz
• Current rating: 18…23A
• IP rating: IP20
• Manufacturer series: V1000
