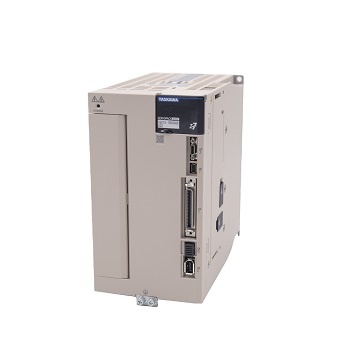

Yaskawa SGDV-200A01A Servo Motor Drive SGDV200A01A

• Extended Product  Type: Servo Motor Drive
• Product ID: SGDV-200A01A
• Yaskawa Type Designation: Servo Motor Drive

Description of Yaskawa SGDV-200A01A Servo Motor Drive

The SGDV Sigma 5 servo amplifier offers a wide range of models and options to match your individual application requirements. When connected to a host controller in the MECHATROLINK‑2 network provides not only torque, position and speed control but also synchronized phase control.

Specification of Yaskawa SGDV-200A01A Servo Motor Drive

• Manufacturer Part Number: SGDV-200A01A
• Item Number: SGDV-200A01A
• Manufacturer: Yaskawa
• Product Series: SIGMA V SGDV
• Family Series: Yaskawa Drives, SIGMA V SGDV Series
• Power Rating (kW): 3 kW
• Voltage: 200 VAC
• Continuous Rated Current (3PH): 19.6 A
• Peak Rated Current (3PH): 56 A
• Control Mode: Rotary Servo
• Phase: 3
• Encoder Feedback: Yes
• Frequency Response: 1,000 Hz
• Analog Inputs: 2
• Analog Outputs: 2
• Digital Inputs: 7
• Digital Outputs: 3
• Line Regenerative: No
• Onboard Comm.: Serial
• Profibus: Optional
• Operating Temp Range: 0-55 °C
• DeviceNet: Optional
• Approvals: UL
• RoHS: No
