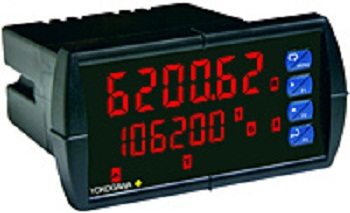

YPP6200 Analog Input Flow Rate/Totalizer

The YPP6200 Meter is specifically designed for displaying flow rate and total from a flowmeter with an analog output, such as 4-20 mA or 0-10 V. The YPP6200 is particularly well suited for flow applications because of its six-digit, dual-line display that can be programmed for a wide variety of display configurations.

Features include:

• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, &plusm;10 V Inputs
• Rate Displayed as Units per Second, Minute, Hour, or Day
• Total, Grand Total or Non-Resettable Grand Total
• 9-Digit Totalizer with Total Overflow Feature
• Dual-Scale for Level Applications – Single Input
• Isolated 24 VDC @ 200 mA Transmitter Power Supply
• Signal Input Conditioning for Flow
• 32-Point Linearization, Square Root or Exponential Linearization
• Multi-Pump Alternation Control
• Large Dual-Line 6-Digit Display, 0.60″ & 0.46″
• Sunlight Readable Display Models
• NEMA 4X, IP65 Front
• Programmable Display & Function Keys
• Universal 85-265 VAC, or 12/24 VDC Input Power Models
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, RS-485 Serial Communication Options
• Modbus® RTU Communication Protocol Standard
• Free PROPLUS Software for Operation, Monitoring, and Programming
